Glass wool is an insulating material made from fibres of glass arranged using a binder into a texture similar to wool. The process traps many small pockets of air between the glass, and these small air pockets result in high thermal insulation properties.

FIBERGLASS MALAYSIA BOARD

Glass wool is produced in rolls or in slabs, with different thermal and mechanical properties. It may also be produced as a material that can be sprayed or applied in place, on the surface to be insulated.

MALAYSIAFIBERGLASS Fiberglass Wool Board Insulation

Length: 0.6-2.4m
Thickness: 25-100mm
Density: 24-96kg/m3
Width: 0.6m-1.2m

MALAYSIAFIBERGLASS^TM Fiberglass Wool Board Insulation:

Facing: None, FSK, Kraft, BGT

MALAYSIAFIBERGLASS^TM Fiberglass Wool Board Insulation Overview:

MALAYSIAFIBERGLASS^TM complete fiberglass wool production lines employing latest-generation technology to manufacture boards, rolled blankets and pipes for residential and industrial thermal and acoustic insulation needs, in compliance with the top international standards (EN, DIN, ASTM).

At the system HOT END, the raw materials are dosed, mixed, melted, fiberized, impregnated with a special binder and formed into a primitive mat of very fine fiber glass. Continuous conveyors transport the mat to the COLD END of the plant for binder polymerization. The product is then cut to shape and packed for shipping.

MALAYSIAFIBERGLASS^TM fiberglass wool production lines range from 5 to 700 tons/day capacity (100,000 to 1,500,000 tons/year), and are fully automated thanks to PLC and Scada systems.

All MALAYSIAFIBERGLASS TM lines comply with the latest international environmental regulations.

MALAYSIAFIBERGLASS^TM Fiberglass Wool Board Insulation Product specifications:

Model	Density (Kg/m3)	Thickness (mm)	Width (mm)	Length (mm)
MALAYSIA FIBERGLASS-GWB24	24	50	600	1200
		100
MALAYSIA FIBERGLASS-GWB32	32	30	600	1200
		50
		100
MALAYSIA FIBERGLASS-GWB16	48	25	600	1200
		50
		100
MALAYSIA FIBERGLASS-GWB24	64	25	600	1200
		50
MALAYSIA FIBERGLASS-GWB32	80	25	600	1200
		50

MALAYSIAFIBERGLASS^TM Fiberglass Wool Board Insulation Technical Parameters:

Property	Test Method	Specification
Temperature range	ASTM C411	Up to 233 oC (450 oF)
Moisture absorption	ASTM C1104	< 1.0% at 49 oC, 95% RH
Corrosivity	ASTM C665	Does not accelerate
Mold resistance	ASTM C665	No growth
Surface burning Characteristics Fire Test	ASTM E84 BS 476 Part 6,7 AS 1530-3	Flame spread              < 25 Smoke developed          < 50 Class                       0 Ignitability Index              0 Spread of Flame Index        0 Heat Evolved Index            0 Smoke Developed Index      1

MALAYSIAFIBERGLASS^TM Fiberglass Wool Board Insulation Distinctive advantages:

  Excellent thermal, acoustical properties

  Light weight and easy to fabricate on job site

  Non-combustible and fire-retardant

  Very economical, especially when using thick layers of insulation

  Durable, life-time and termite proof

MALAYSIAFIBERGLASS^TM Fiberglass Wool Board Insulation Applications:

MALAYSIAFIBERGLASS^TM Fiberglass Wool board Insulation is light and easy to install at office building, modern entertainment centre, roof, HVAC system and also other residential, industrial buildings such as:

 Walling and partitioning     Faced and external walls        Suspended ceiling

 Steel structures                      Prefabricated houses             HVAC Duct works

 Steel structures                     Pre-fabricated houses            HVAC Duct works



HIGH DENSITY ACOUSTIC MALAYSIA FIBERGLASS BOARD

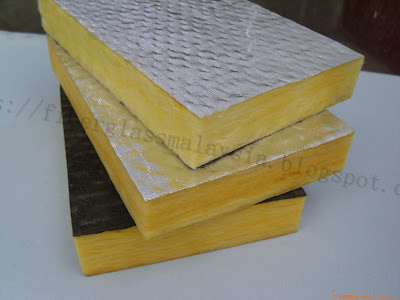

VARIOUS TYPES OF ALUMINIUM FACING

CLOSEUP LOOK AT MALAYSIA FIBERGLASS BAORD

MALAYSIA FIBERGLASS BOARD STORAGE AREA

Fiberglass Malaysia provide money back guarantee against density instability.
Buyer shall responsible for shipping charges for returns. Once the returned item is received and confirmed, full amount of the product  price will be refunded within 5 working days. Outgoing shipping fee is chargeable.

• Fiberglass Malaysia offer 100% satisfaction guarantee to all of our customer.
• Fiberglass Malaysia is 100% imported material. We guarantee that our raw material is 100% virgin material
• Our products come with a 7 day money back guarantee. Buyer pays return shipping.
• When returning goods, please keep proof of return in the event that goods go missing in transit. It is  your responsibility to ensure the goods are adequately packaged to ensure that they are not damaged during return transit.
• All required products must be
  • Undamaged.
  • Returned within 7 days of delivery.
• Please do not hesitate to contact Fiberglass Malaysia if you have inquiry about our products

MALAYSIA FIBERGLASS BOARD APPLICATION
